HILA SERIES

DIRECT & INDIRECT LINEAR LIGHT

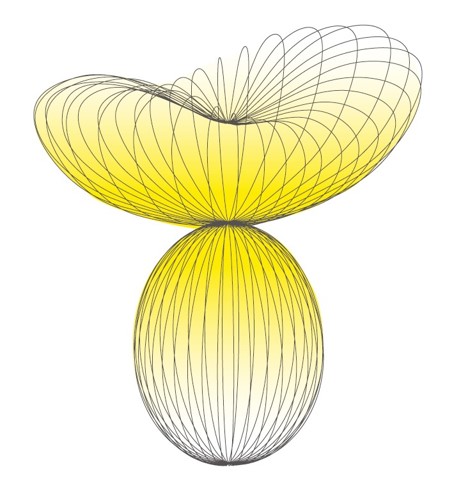

•    Direct and Indirect lighting distribution.
•    Combined with 5 optical solutions for indirect lighting.
•    Elegant design with internal driver by size in W100xH96mm.
•    More optical options in PC lens, Anti-glaring optical kit.
•    More lighting options in 95+ or 80+ Ra, white color from 2200K to 6500K.

•    More dimming/controlling options by Dali, 0/1-10V, DMX, PWM, 2.4G Static,

     Tunable white, Dim to warm, RGBW.

•    Multi-installation in Sus-pendant, Ceiling Mounted.



ACCURATE TIR OPTICAL LENS
(Total Internal Reflection)

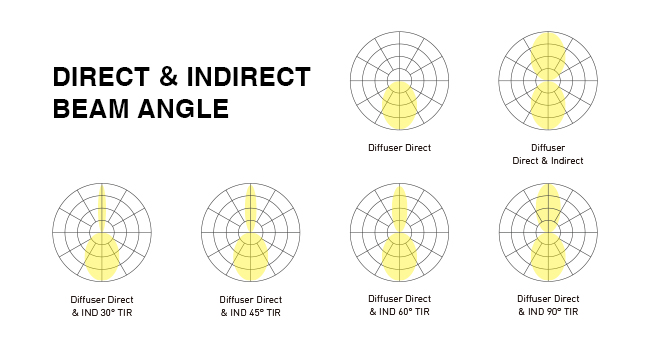

INDIRECT

LIGHTING

Lumen output on light source from 100lm/w to 180lm/w, then the luminaire’s lumen output up to 120lm/w.
Color Temperature available from 220K to 6500K.Branded LED chips in both MacAdam 3step, 5step.

MORE lIGHT SOURCE & DRIVER OPTIONS.

HILA SERIES

OPTICAL OPTIONS

General PC lens with high transmission.
Made in US anti-glaring optical kit available as well.

-----------
